  1. User Interface

Toolbar and Menu

Available in Rhino User Interface

PreviousRhino and RhinoArtisan InterfaceNextRibbon

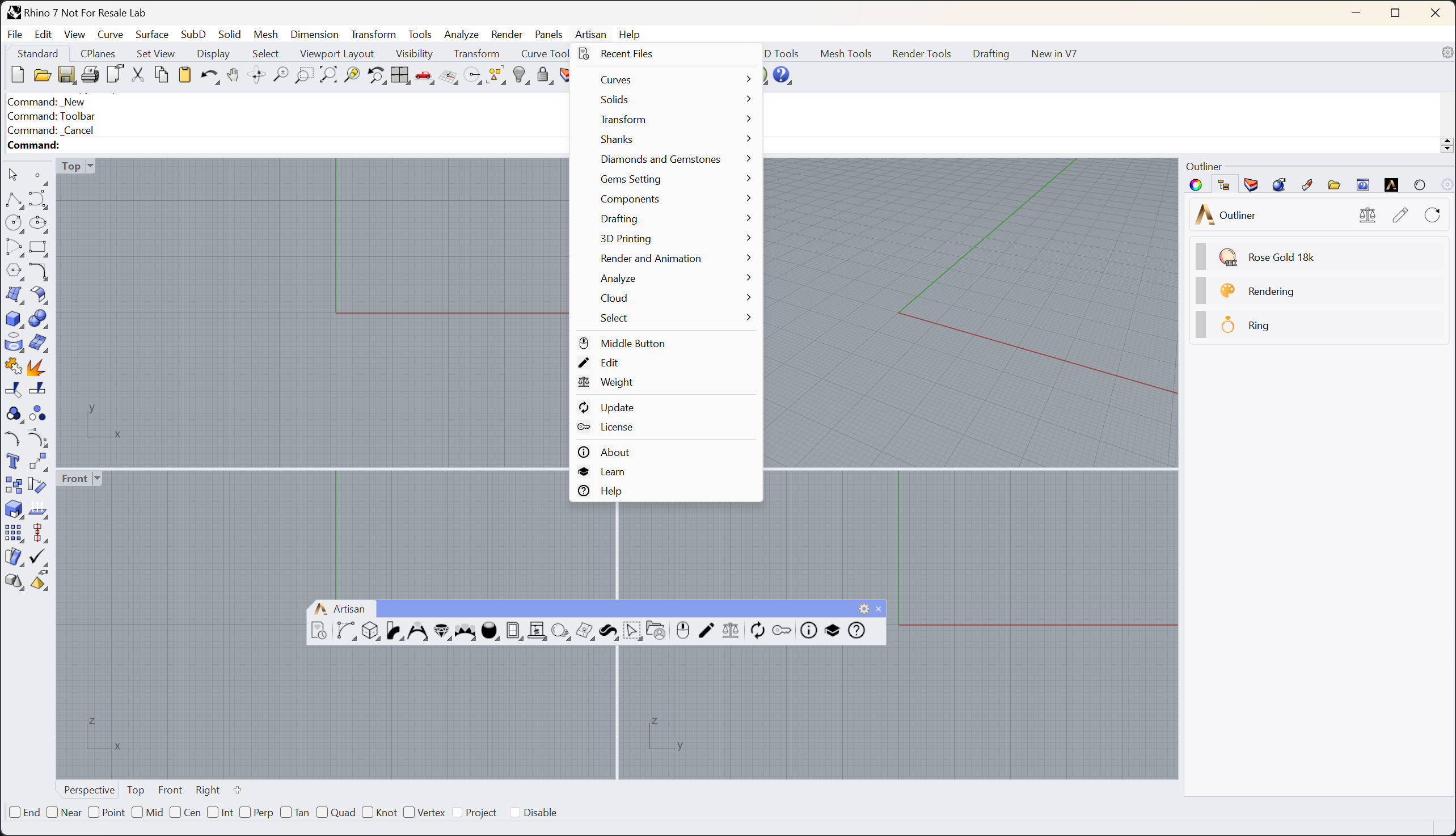

In the Rhino user interface, we can run RhinoArtisan in three ways, just like in Rhino: Menu, Toolbar or by Command Prompt

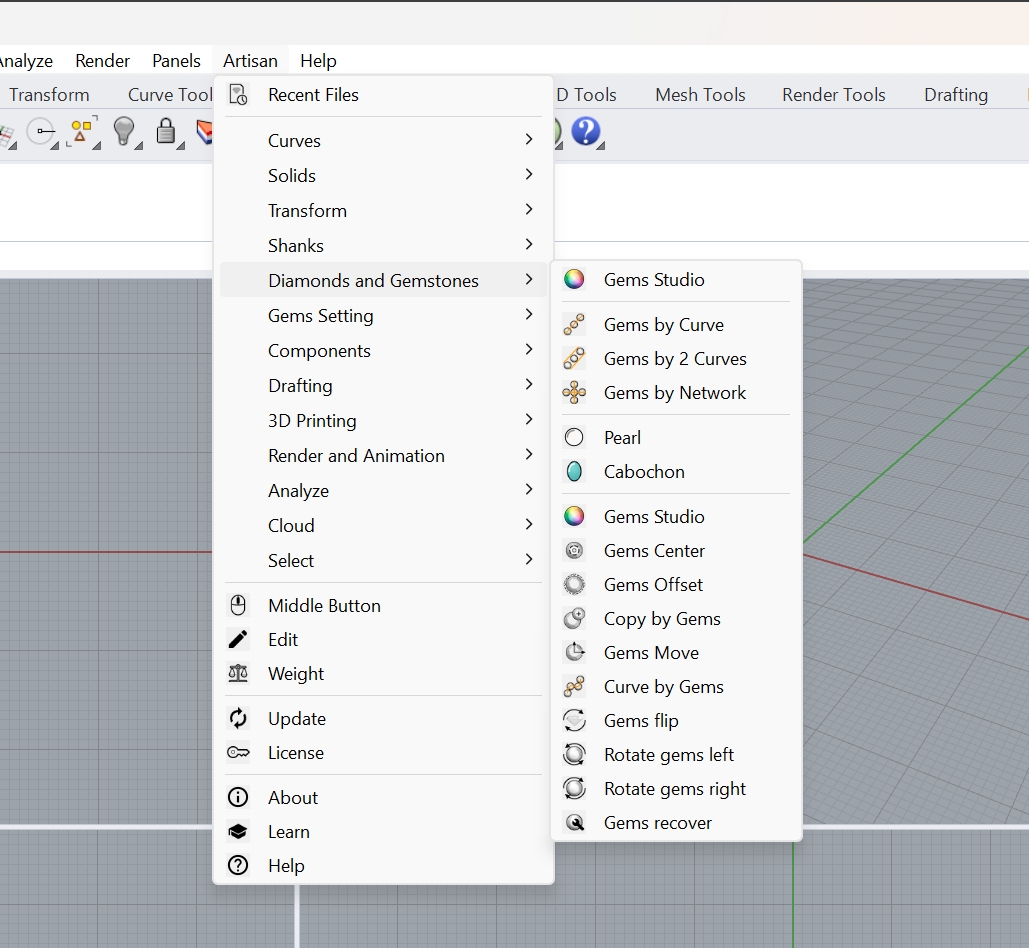

Menu

A new menu will appear in Rhino with the name Artisan.

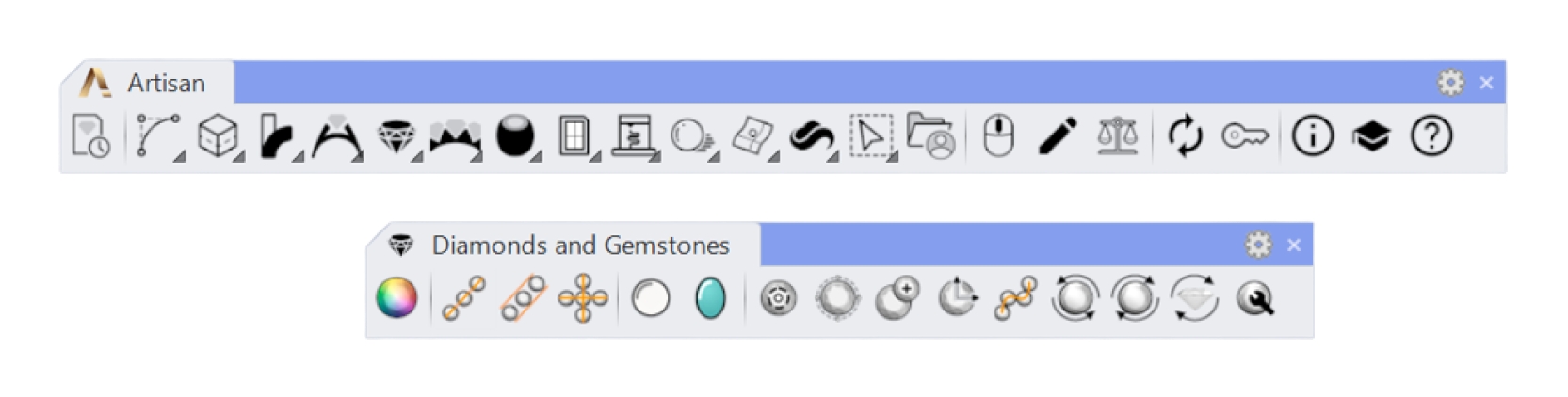

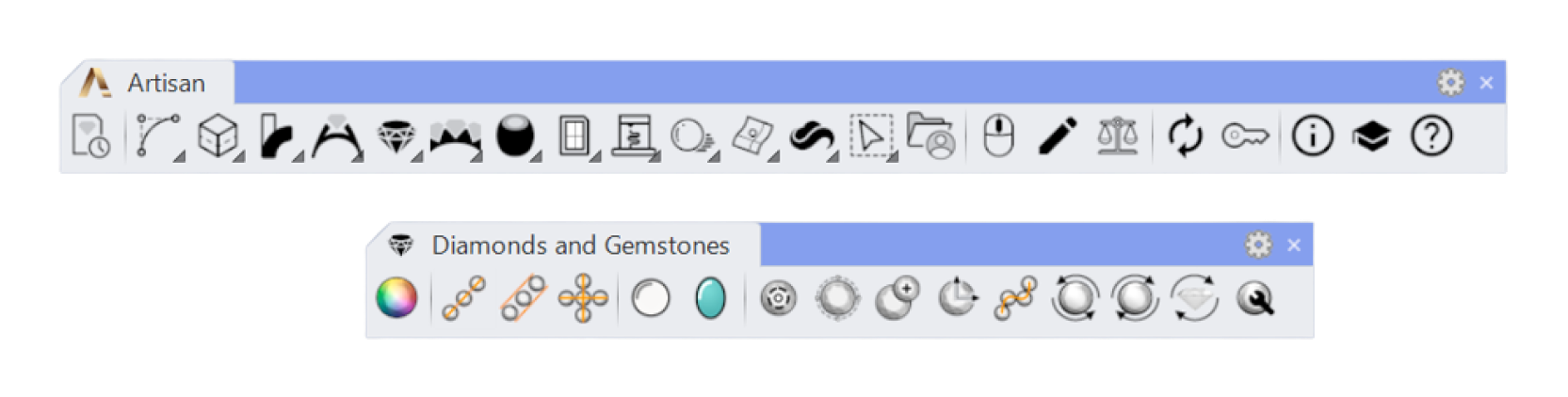

Toolbar

When RhinoArtisan is installed, the toolbar will also appear. As in any other Rhino toolbar, we can see that some icons have a small triangle at the bottom right, it will open a new toolbar.

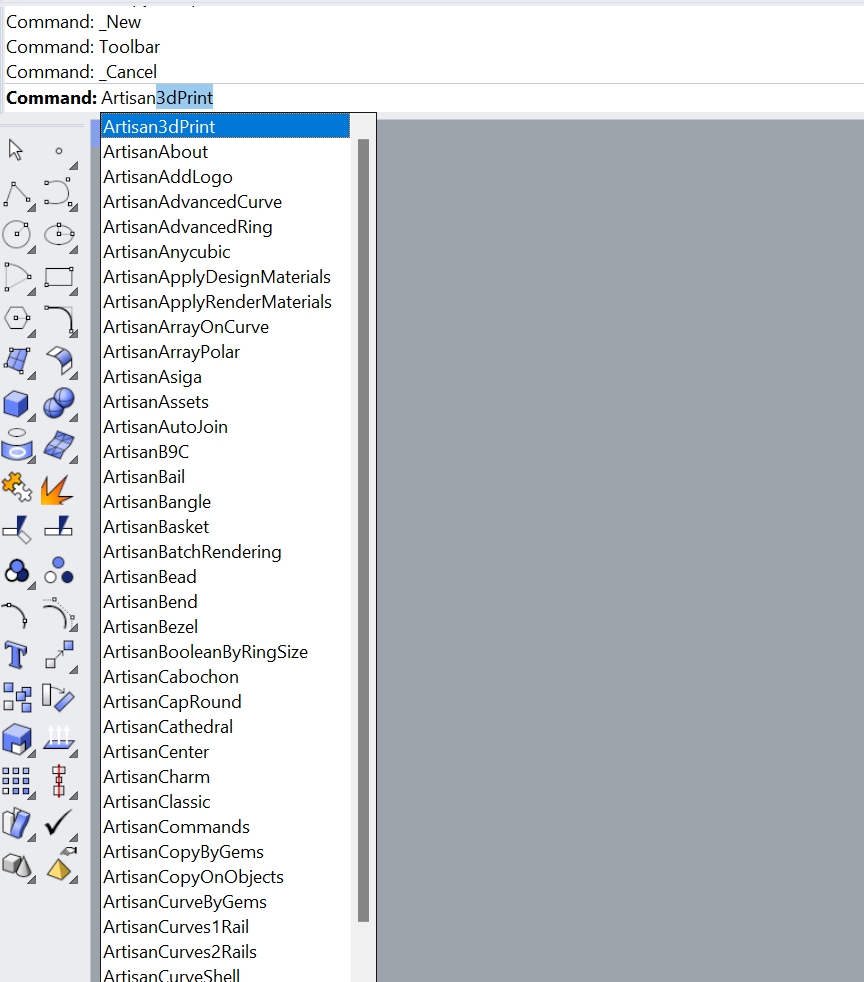

Commands

All RhinoArtisan tools are available at the command prompt. All commands start with Artisan.
